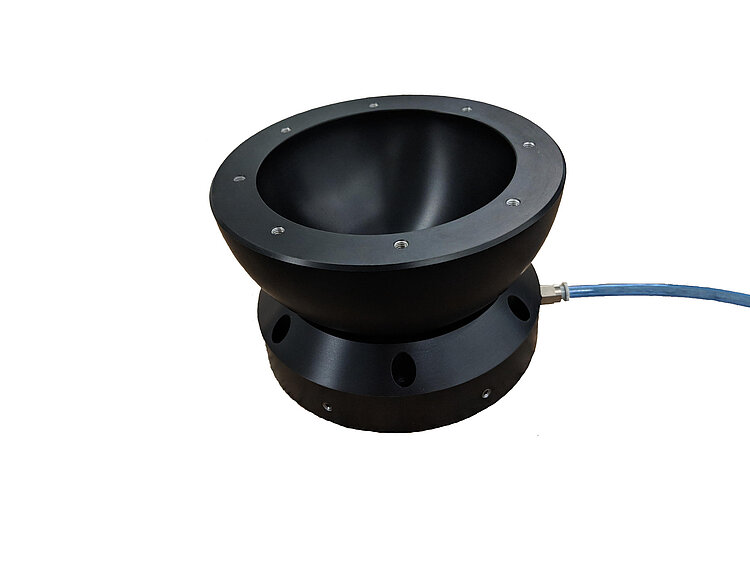

A-65x PIglide HB: Hemispherical Air Bearing Module

Friction-Free, Ideal for Rotational Motion on Three Axes

  • Cleanroom compatible
  • Low inertia, rotatable in three directions
  • Diameter up to 300 mm
  • Load capacity to 635 kg, tip/tilt range to ±45°
  • Operating pressure from 30 psi to 90 psi (207 kPa to 621 kPa)
  • Ideal for satellite control and simulation of weightlessness
A-65x PIglide HB: Hemispherical Air Bearing Module
Product Description Specifications Downloads Quote / Order

Overview

The PIglide HB series with spherical air bearings makes unique positioning and simulation applications possible in the fields of research and industry. The bearings offer excellent load capacity and stiffness, and at the same time, inherent friction-free motion on three rotational axes. The spherical bearings, which are often used in research on weightlessness in satellites, are also used in systems for precision chip contacting and optical alignment. Due to the use of spherical bearings at both ends of the drive screw shaft, it is possible to build extremely stiff drive screws. This arrangement allows precision alignment of the drive screw shaft due to the motion of one spherical bearing relative to the other.

Accessories and options

  • Air preparation kit
  • Custom configurations on request

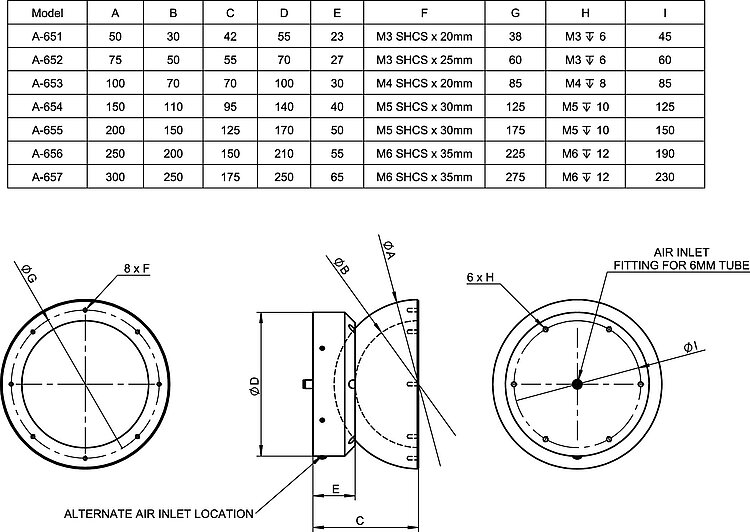

Specifications

Datasheet

Datasheet A-65x

Version / Date
2021-02-11
pdf - 846 KB
Version / Date
2021-02-10
pdf - 850 KB
Version / Date
2020-01-15
pdf - 336 KB

Downloads

Datasheet

Datasheet

Datasheet A-65x

Version / Date
2021-02-11
pdf - 846 KB
Version / Date
2021-02-10
pdf - 850 KB
Version / Date
2020-01-15
pdf - 336 KB

Documentation

Documentation

User Manual A-65x

Piglide HB: Hemispherical Air Bearings

Version / Date
v.3 2019-03-21
pdf - 686 KB
English

3-D Models

3-D Models

A-65x 3-D model

zip - 578 KB

White Paper

White Paper

Air Bearings: When to Use and When to Avoid in Your Motion Application

All Positioning Stages are not Created Equal. Author: Matt Reck, PI

Version / Date
WP4003 2015-09
pdf - 3 MB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Ask an engineer!

Quickly receive an answer to your question by email or phone from a local PI sales engineer.
